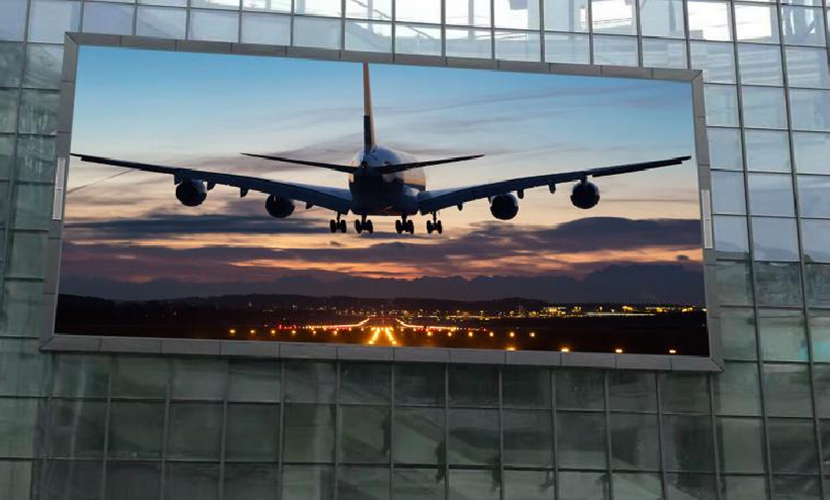

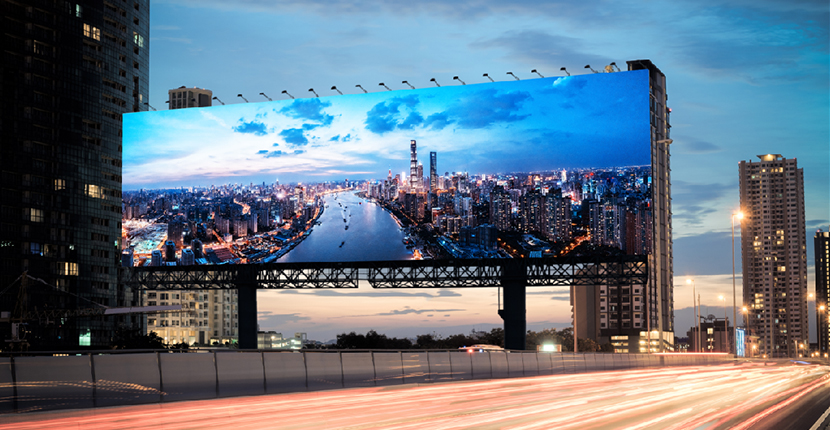

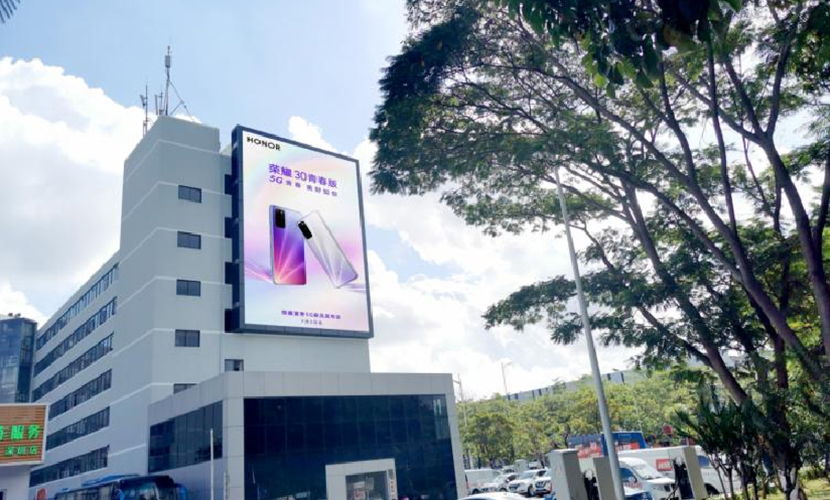

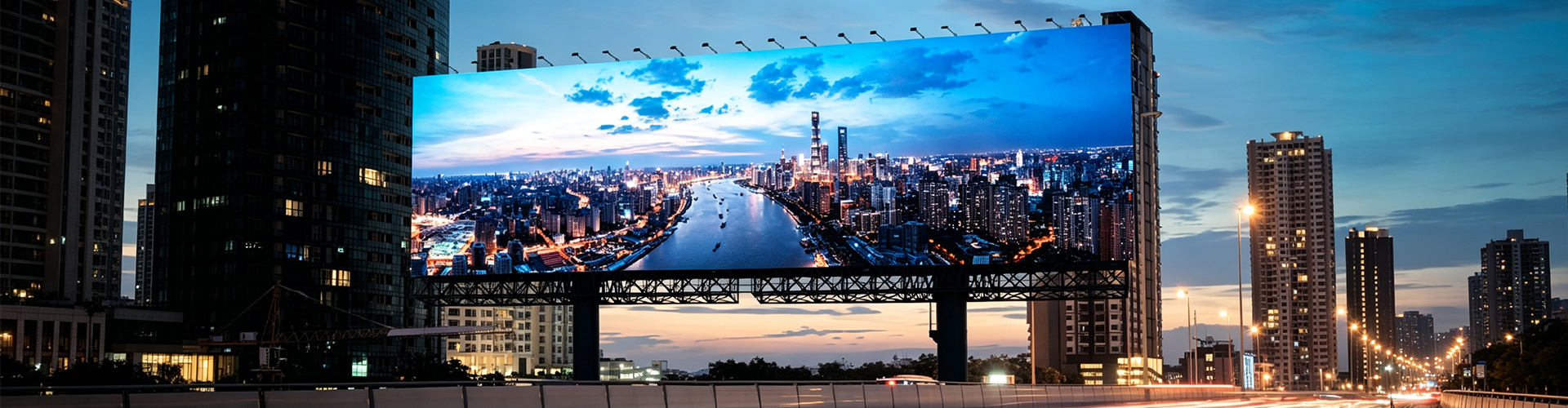

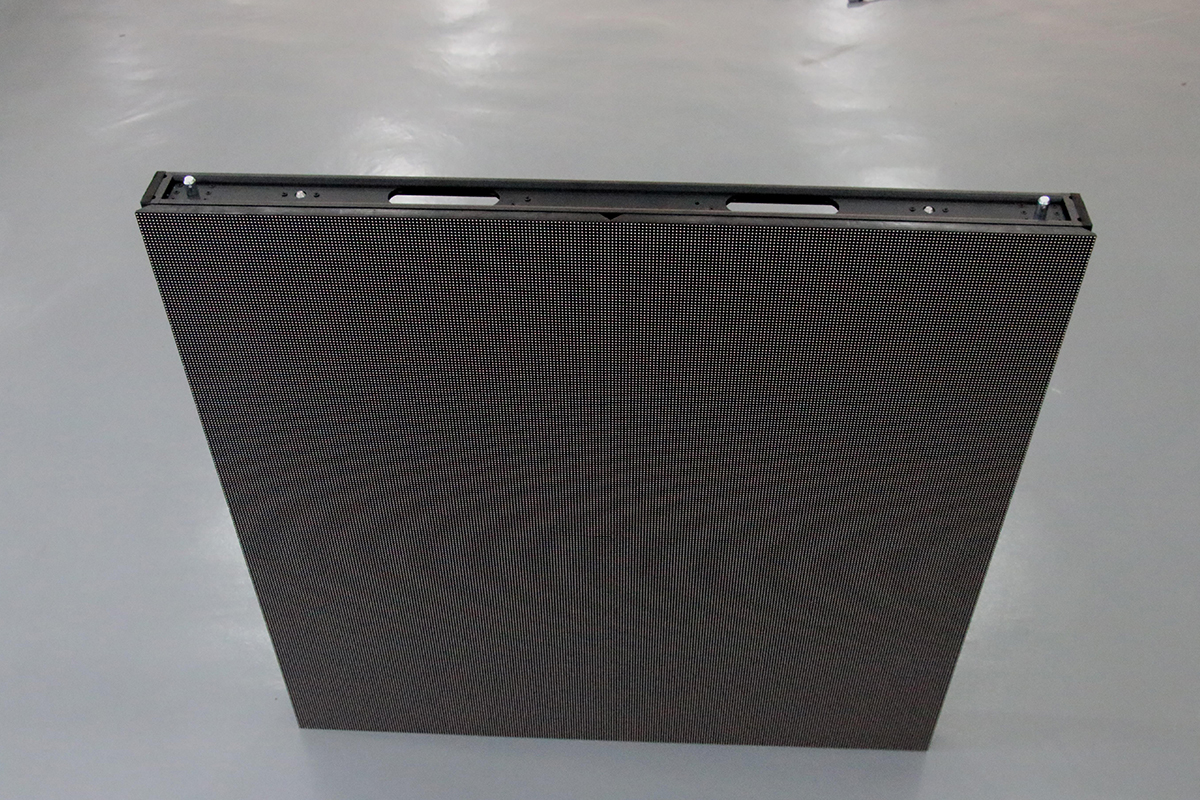

Built for all outdoor scenarios, the Aura-AS Outdoor Aluminum Cabinet LED Display features high-efficiency passive heat dissipation, full IP65 protection, full front maintenance and flexible shaped splicing. It provides a durable, stable and cost-effective display solution for outdoor commercial and architectural applications.
Core Advantages
Common Cathode Energy-Saving Technology, Cutting Operational Costs by Half
Equipped with common cathode technology, the display cuts power consumption by 40% and reduces long-term overall operational costs by 50%. It significantly saves electricity bills, delivering superior cost performance for long-term outdoor use.

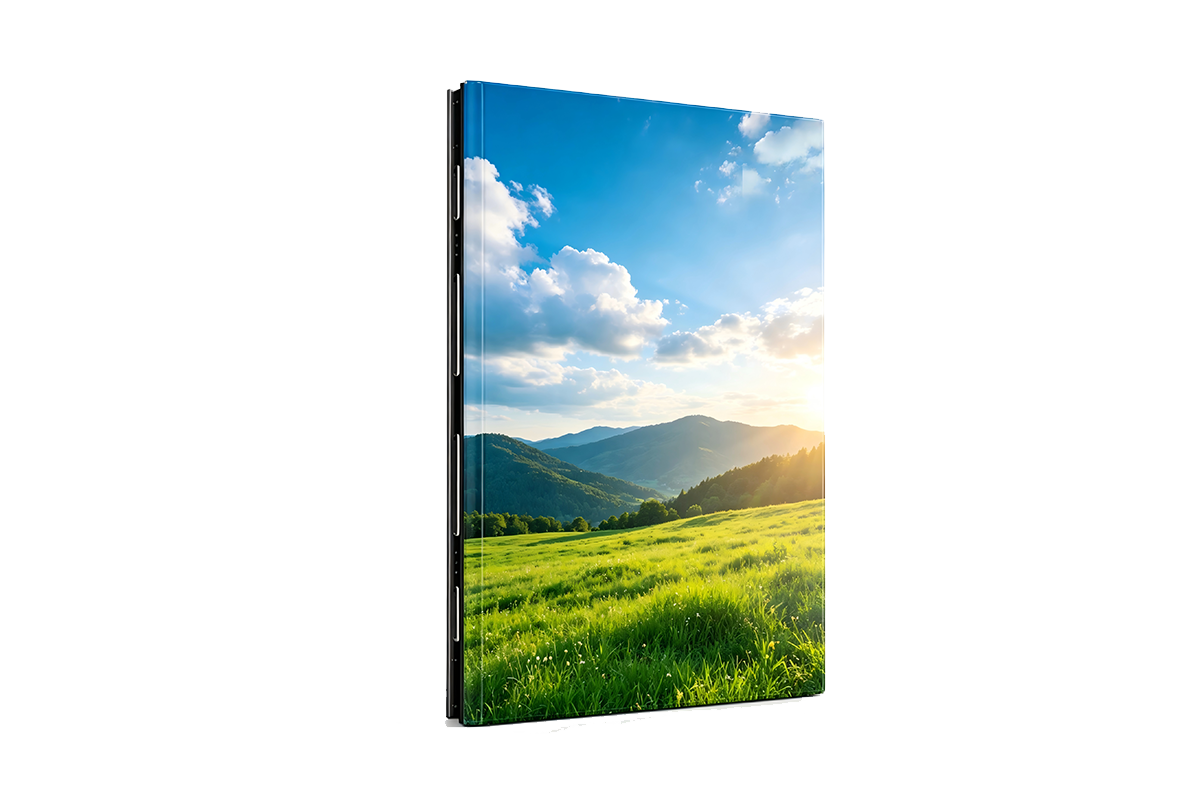

Ultra-Light & Thin Aluminum Cabinet, Safer & Easier Installation
Weighing only 20kg/㎡, the ultra-light thin aluminum cabinet eases the load of wall and steel structures and lowers construction costs. The modular design supports single-person assembly and disassembly, greatly improving construction efficiency.

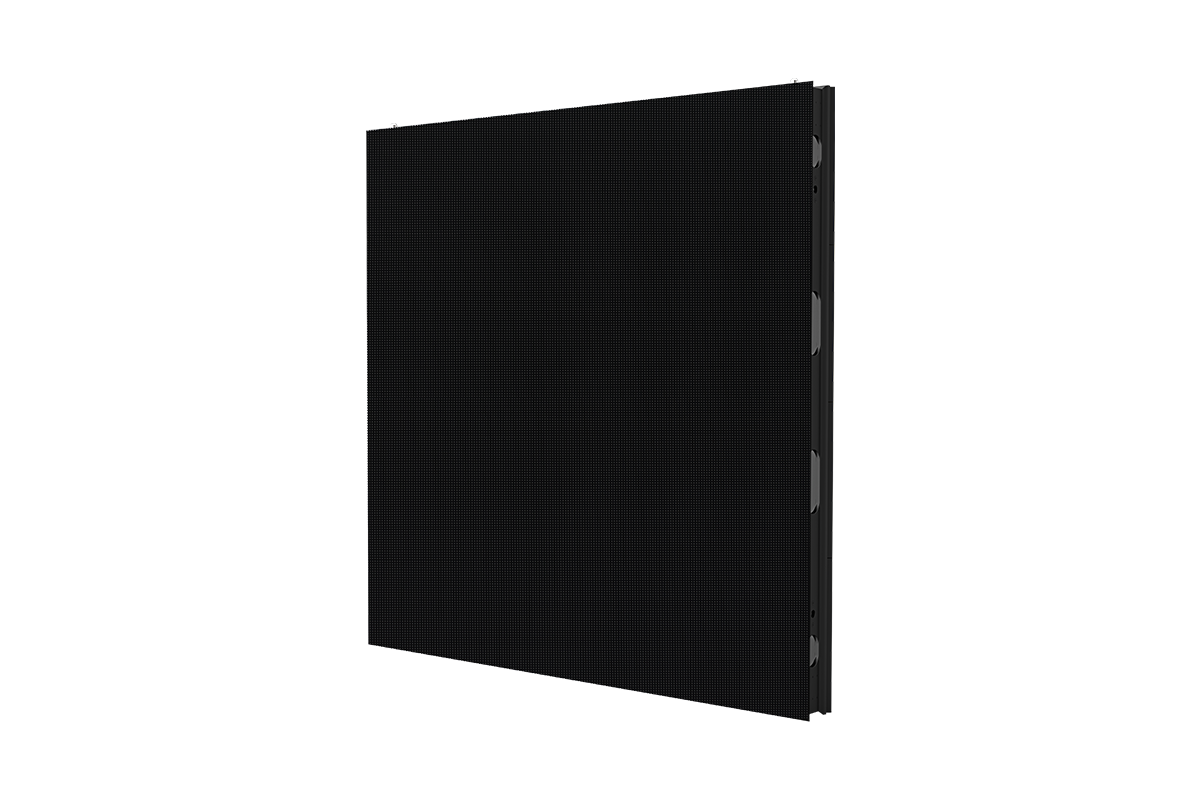

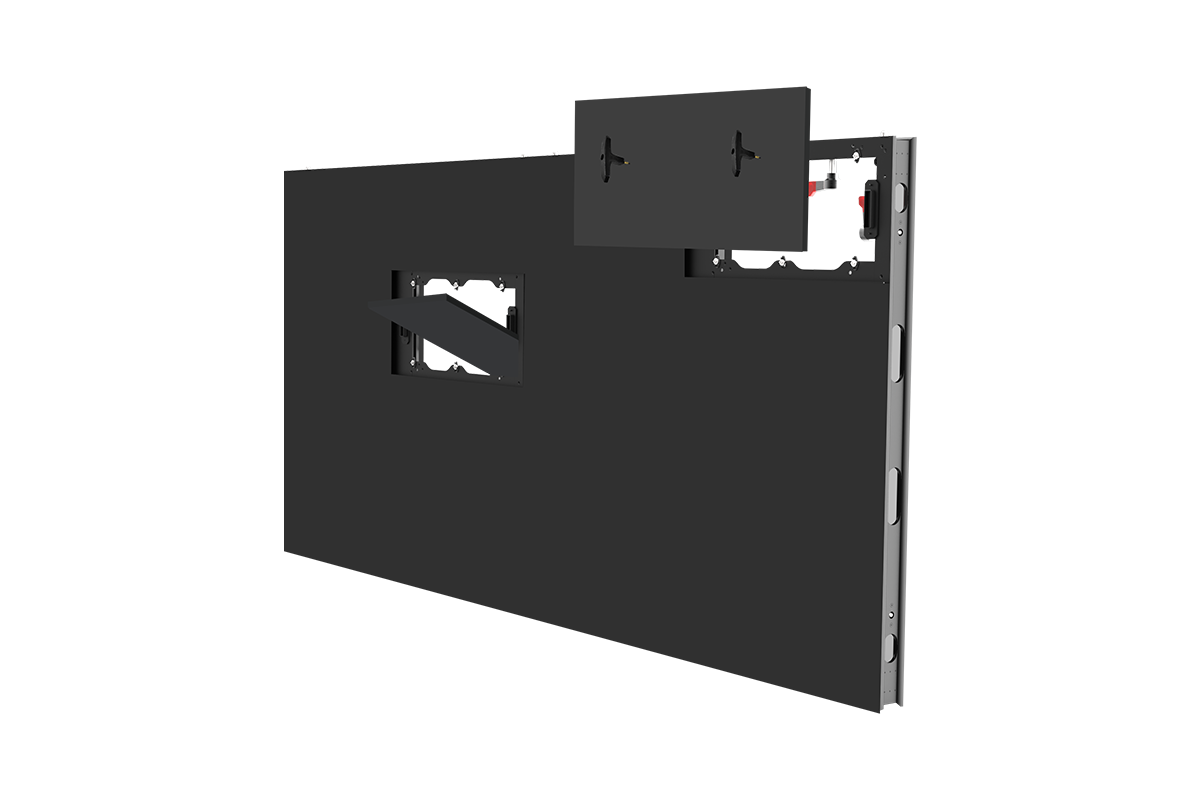

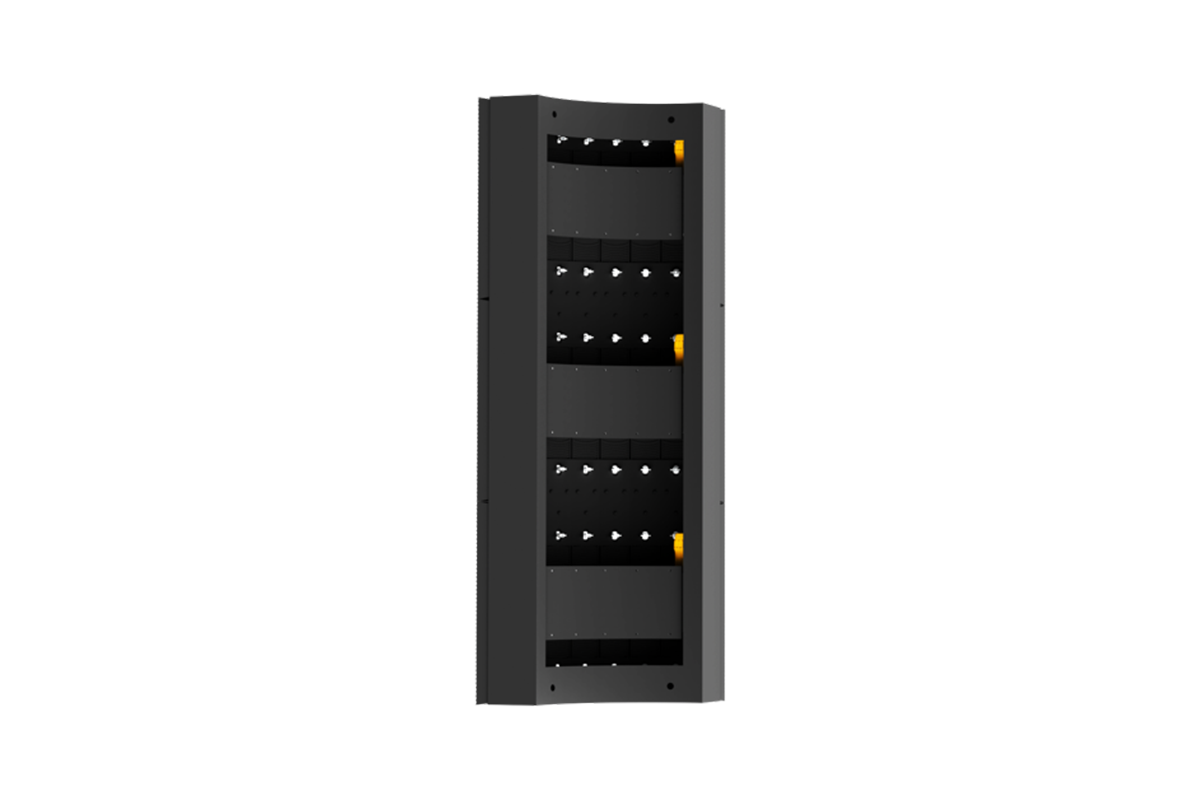

Full Front Rapid Maintenance, No Reserved Maintenance Space Required
Full front maintenance design requires no rear maintenance space. Regular faults can be fixed within 10 minutes. Compatible with front and rear disassembly, it fits all complex outdoor installation modes including wall-mounted, embedded and hoisting.

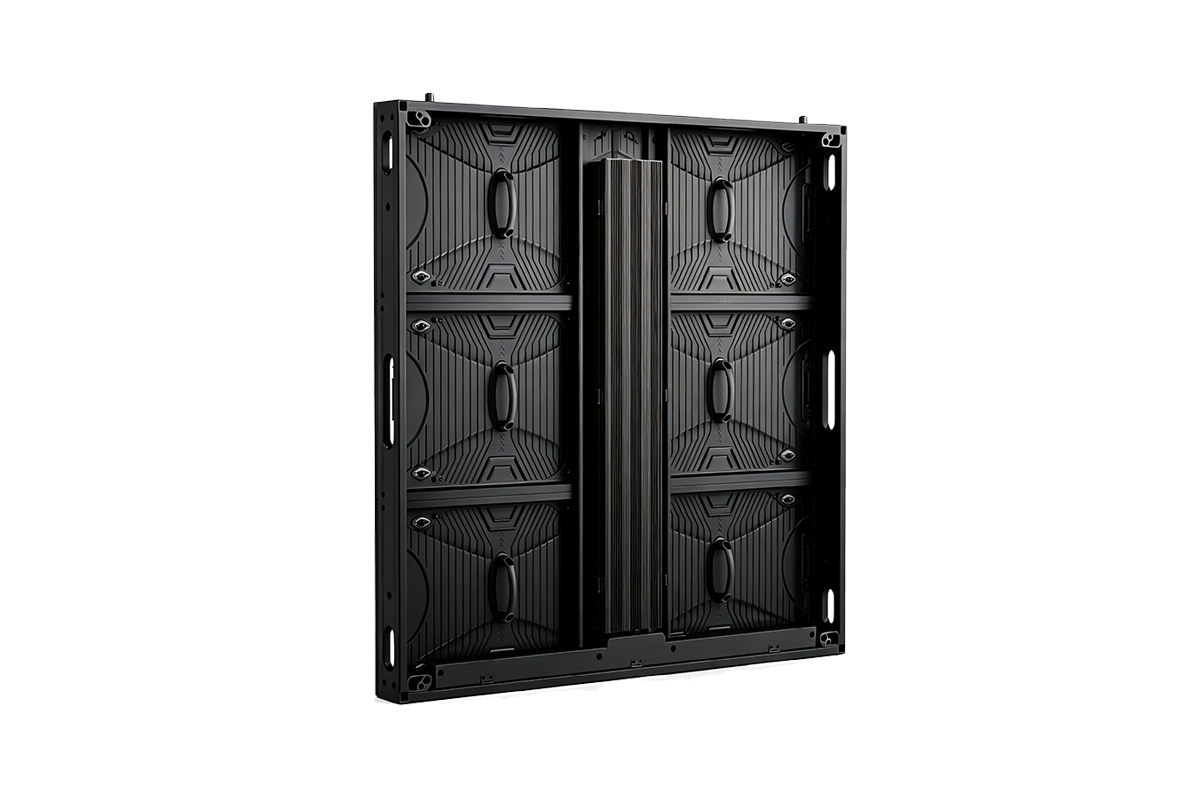

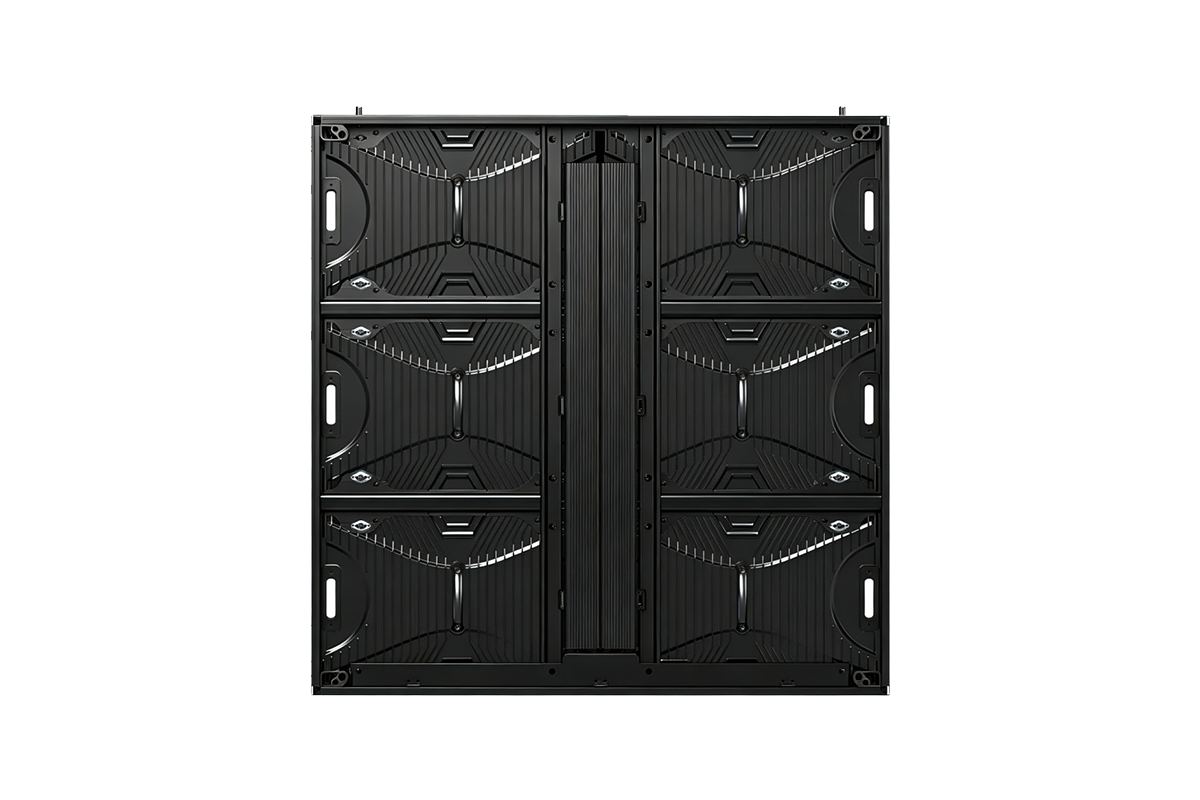

All-Aluminum Passive Heat Dissipation, No Auxiliary Cooling Equipment Needed
The integrated full-aluminum bottom shell quickly dissipates heat from PCBs and driver ICs. Fanless passive heat dissipation ensures stable, noiseless operation, reduces light attenuation and effectively prolongs the display’s service life.

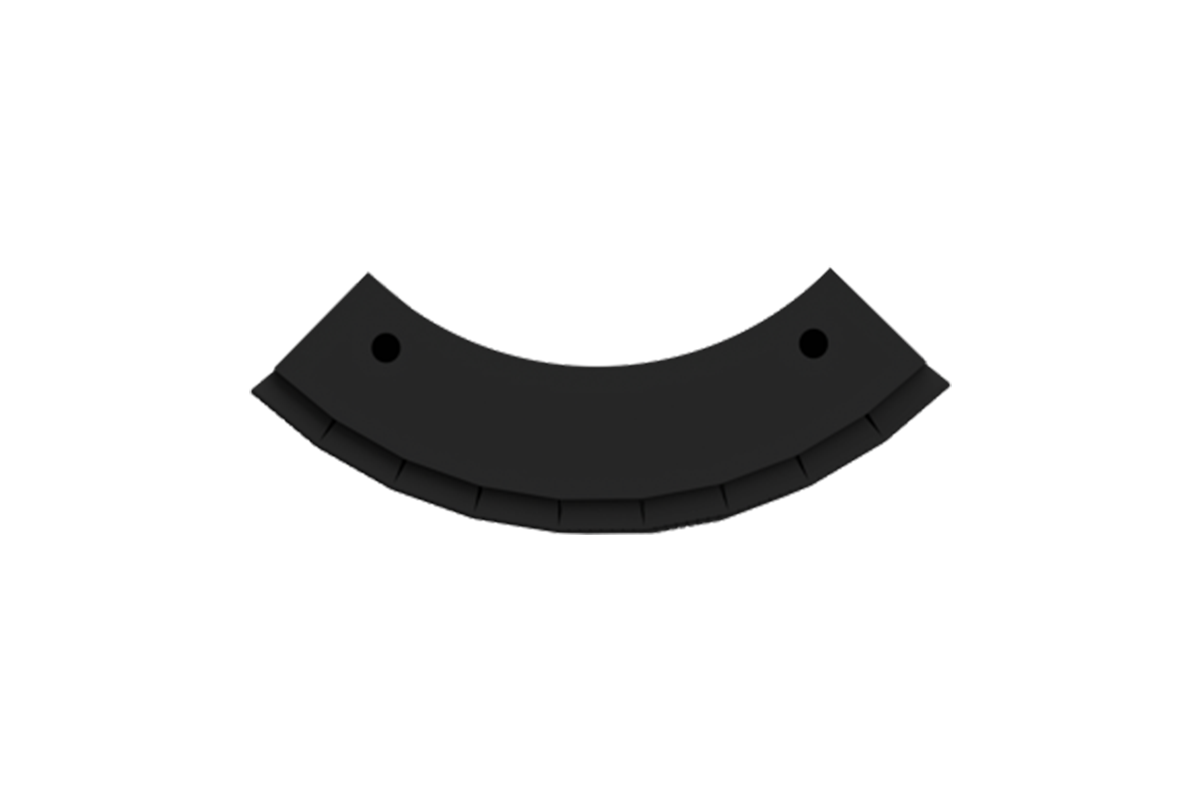

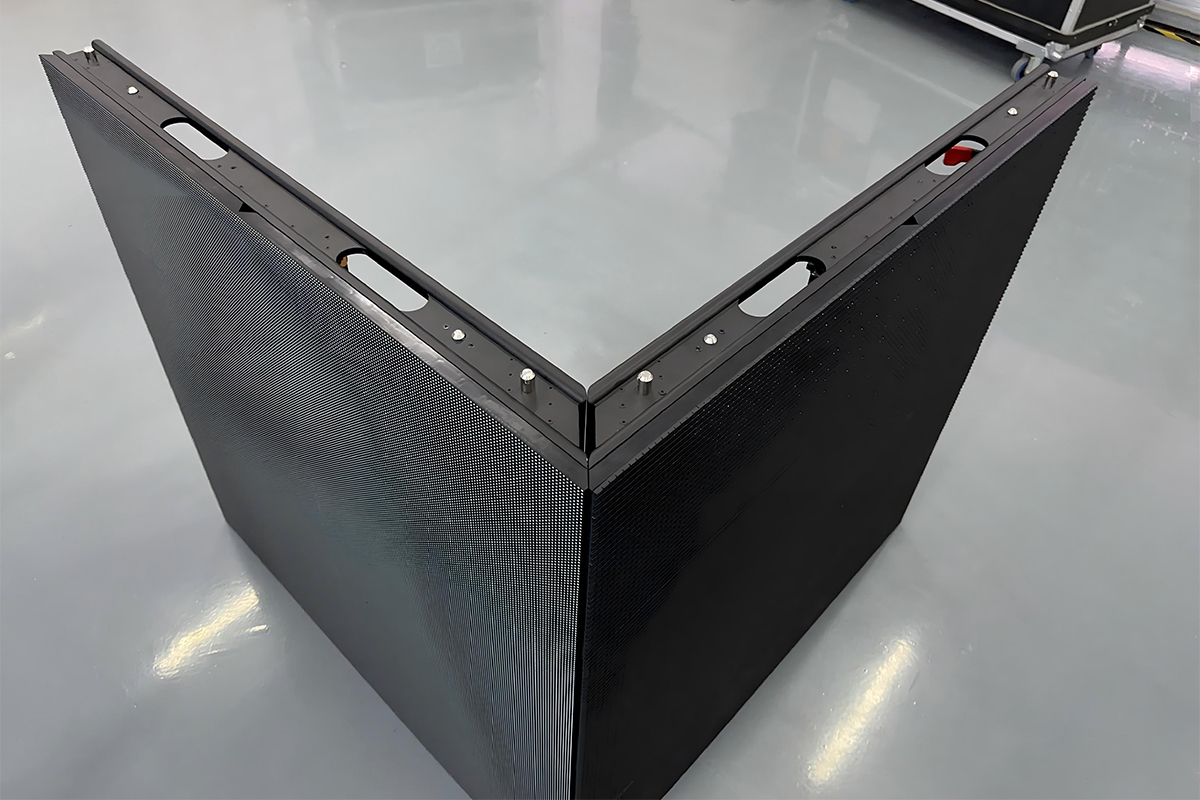

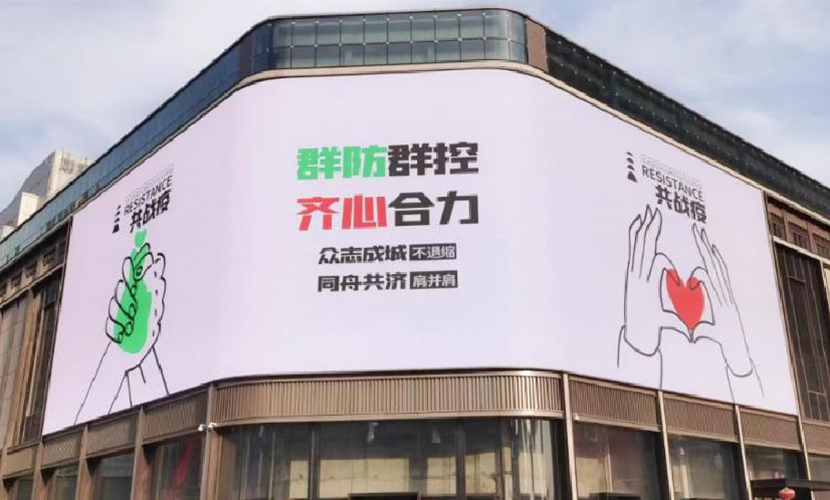

45° Free Splicing, Adaptable to Diverse Special-Shaped Outdoor Shapes

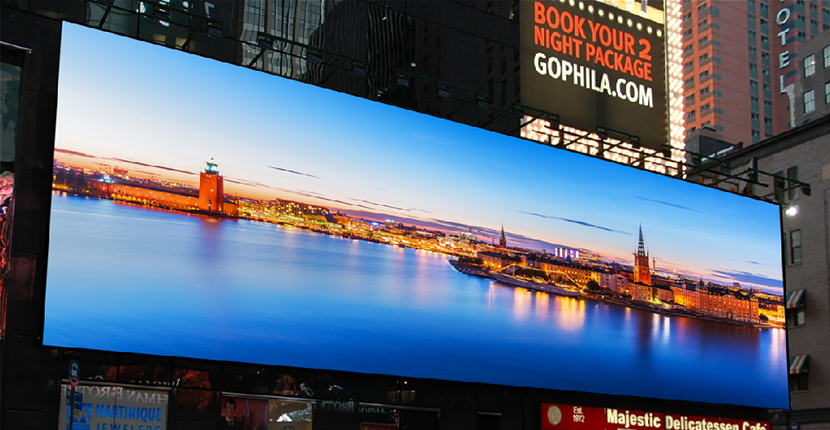

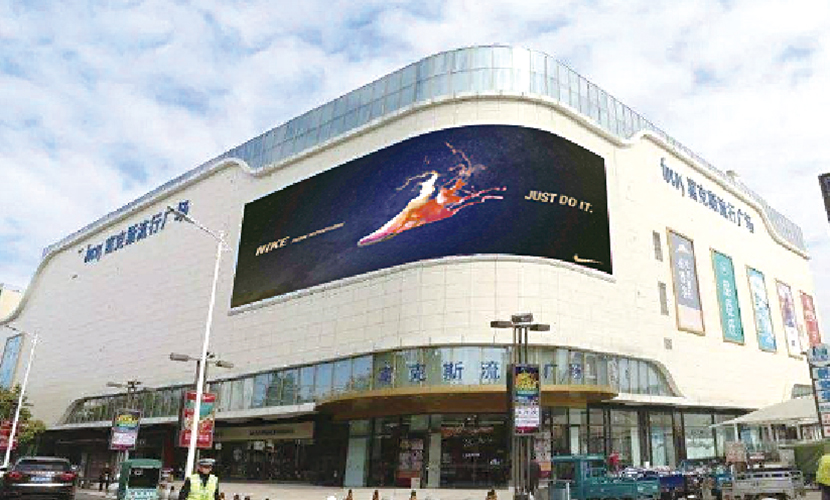

Supporting seamless splicing for right angles, 45° corners and curves, the display enables diverse creative shapes. It is ideal for building curtain walls, squares, storefronts, curved columns and all customized outdoor scenarios.
